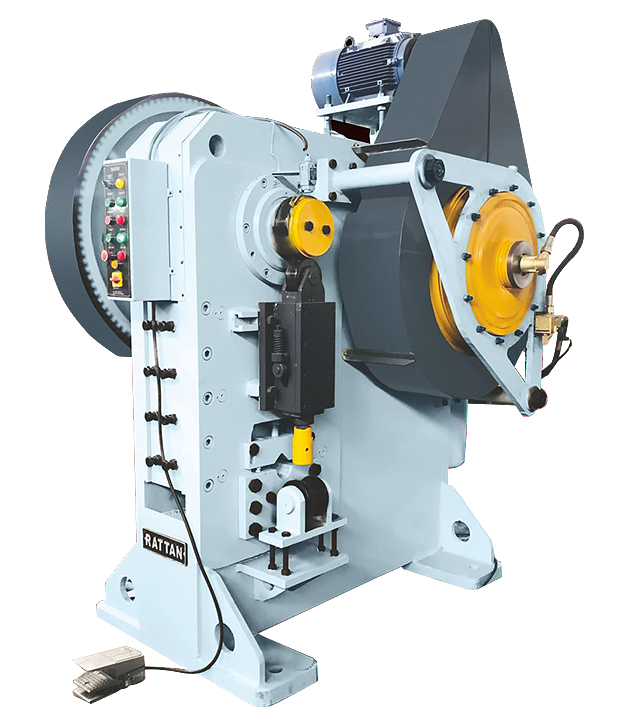

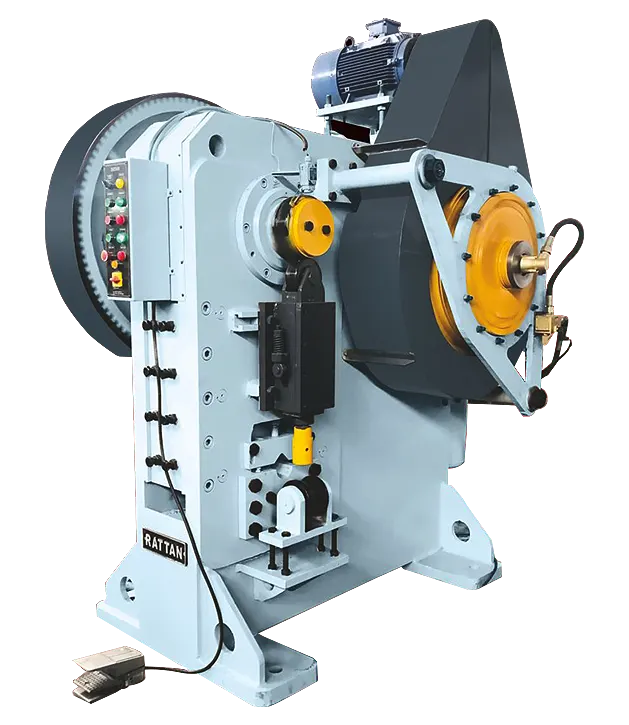

Billet Shearing Machine
- Home
- /
- Our Products
- /
- Billet Shearing Machine
We do undertake to manufacture Billet Shearing Machine from 6 OR 150mm M.S. Square/ Round Cutting Shearing capacity as per clients requirements. We use heavy duty double spherical Bearings and G.M. Bushes in Main Shaft and Back Shaft.
Technical specification for Billet Shearing Machine
| Capacity (Mild Steel ) | 50mm | 75mm | 100mm | 125mm | 150mm |
|---|---|---|---|---|---|
| Capacity (Alloy Steel ) | 40mm | 60mm | 80mm | 110mm | 125mm |
| Measuring Length | 50/300 | 50/300 | 75/350 | 100/350 | 100/450 |
| No. of Pcs. per minute | 35 | 28 | 22 | 18 | 12 |
| Working height | 800 | 800 | 800 | 800 | 800 |
| Clutch | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Air Pressure Kg/cm2 | 5,5 | 5,5 | 5,5 | 5,5 | 5,5 |
| Motor HP | 10 | 20 | 30 | 40 | 50 |
| Approx Weight Kgs | 7000 | 9000 | 14000 | 18000 | 22000 |
Shearing Quality
The “Rattan” Shearing machines ensure perfect cuts both for square ness and for cleanness of the shearing surface. “Rattan” technology allows a precise adjustment way alloyed & mild steels, aluminum, brass etc.
Machine's Design
The beauty of “RATTAN” shearing machines are to incorporate maximum possible facilities to their users without incurring exorbitant investment. The frames of our machines are rigged & construction and high quality materials are used for their manufacturing. Due to our excellent workmanship and finish of our machines bears pleasant outlook.
Guarantee
The “RATTAN” machines are guaranteed against any manufacturing defect for one year.
Application:
