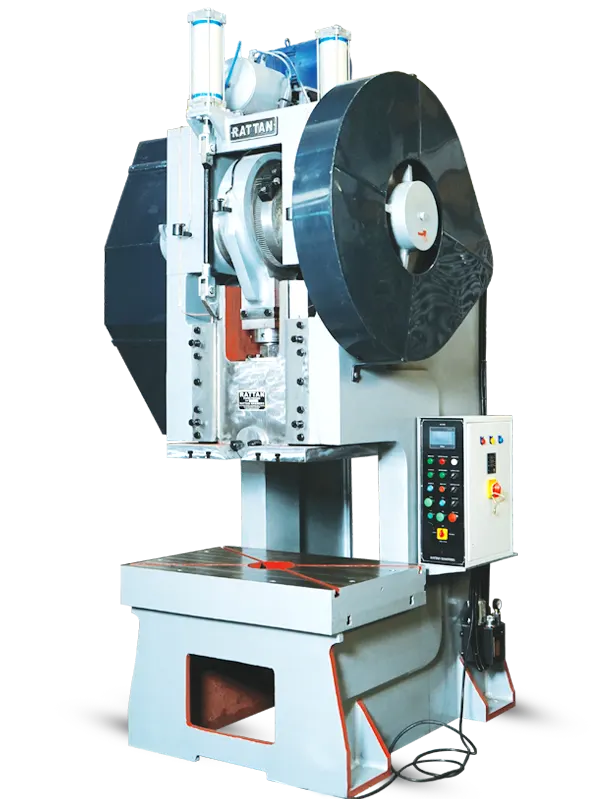

C-Type Power Press offered by us is made using superior grade rolled steel plates to assure low maintenance and long service life. It is required for providing different shapes to sheet metal with application of pressure with help of a punch die. This press is provided with ‘C’ frame and is known to be strain free in nature hence assures excellent workability. C-Type Power Press is provided with cast iron made table & RAM that helps in achieving precise press operation.
Our Products Range
Features:
- Equipped with bronze bushes in pinion shaft
- Has interlocked design
- Completely trustworthy in nature
Technical specification for Trimming Press C-Type
| Capacity In Tons | 10 | 20 | 30 | 50 | 7.5 | 100 | 150 | 200 | 250 |
| Table Size MM | 355×430 | 400×505 | 450×525 | 450×600 | 530×760 | 600×890 | 700×1000 | 750×1100 | 800×1200 |
| Distance Table To RAM | 240 | 254 | 280 | 300 | 350 | 375 | 430 | 450 | 450 |
| Stroke | 68 | 75 | 75 | 90 | 100 | 100 | 125 | 150 | 150 |
| Punch Hole | 28 | 32 | 32 | 32 | 38 | 38 | 45 | 63 | 63 |
| Stroke Per Minute | 90 | 80 | 70 | 60 | 45 | 45 | 40 | 35 | 35 |
| Bore In Table | 100 | 125 | 125 | 150 | 175 | 200 | 225 | 250 | 250 |
| Ram Adjustment | 28 | 45 | 45 | 45 | 45 | 50 | 50 | 50 | 50 |
| HP Required 1440 RPM | 2 | 2 | 3 | 5 | 5 | 75 | 10 | 15 | 20 |
| Pully Size | 125 | 150 | 150 | 150 | 150 | 150 | 175 | 200 | 225 |
