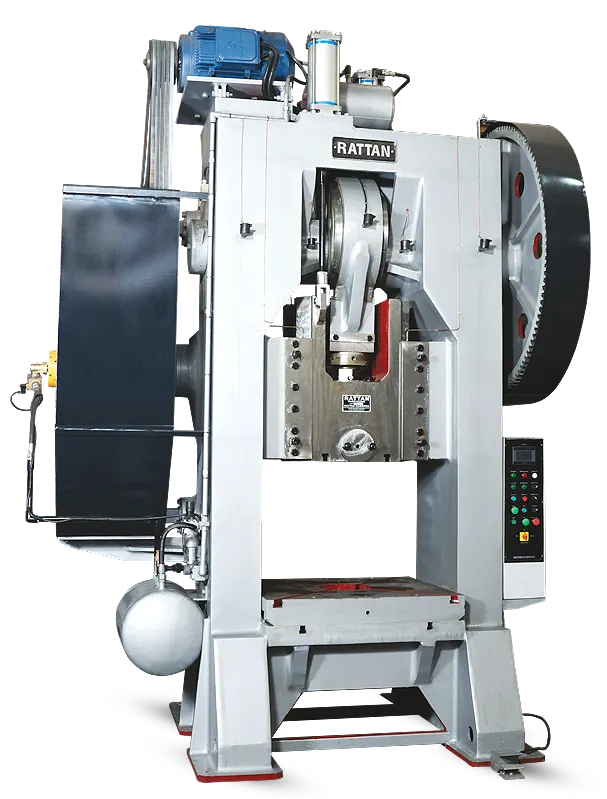

H Type Power Press is required for shaping sheet metal into desired profile by applying pressure in one go. It is a cold working machine which is highly effective for ductile metals. This press offered by us is powered by a heavy duty electric motor which controls pressure application of punching die. H Type Power Press comprises frame, clutch, crank shaft, flywheel, ram slide, gear assembly, and a bed. It is also admired for having adjustable stroke function according to need.
Our Products Range
Features:
- Equipped with bronze bushes in pinion shaft
- Has interlocked design
- Completely trustworthy in nature
Technical specification for Trimming Press H-Type
| Capacity In Tons | 10 | 20 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Table Size MM | 350×350 | 400×400 | 450×450 | 475×500 | 533×585 | 555×600 | 625×650 | 750×800 | 850×850 | 900×900 | 1000×1000 | 1100×1000 | 1200×1000 |
| Distance Table To RAM | 240 | 254 | 280 | 300 | 350 | 375 | 450 | 450 | 500 | 550 | 600 | 700 | 700 |
| Stroke | 68 | 75 | 75 | 90 | 100 | 100 | 125 | 150 | 150 | 175 | 200 | 200 | 200 |
| Punch Hole | 28 | 32 | 32 | 32 | 38 | 38 | 45 | 63 | 63 | 63 | 63 | 75 | 75 |
| Stroke Per Minute | 75 | 80 | 70 | 60 | 50 | 45 | 40 | 35 | 35 | 35 | 35 | 30 | 30 |
| Bore In Table | 100 | 125 | 125 | 150 | 175 | 200 | 225 | 250 | 250 | 250 | 300 | 350 | 350 |
| Ram Adjustment | 38 | 45 | 45 | 45 | 45 | 50 | 50 | 50 | 50 | 50 | 50 | 60 | 60 |
| HP Required 1440 RPM | 2 | 2 | 3 | 5 | 5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 |
| Pulley Size | 125 | 125 | 150 | 150 | 150 | 150 | 175 | 200 | 200 | 225 | 225 | 225 | 225 |
