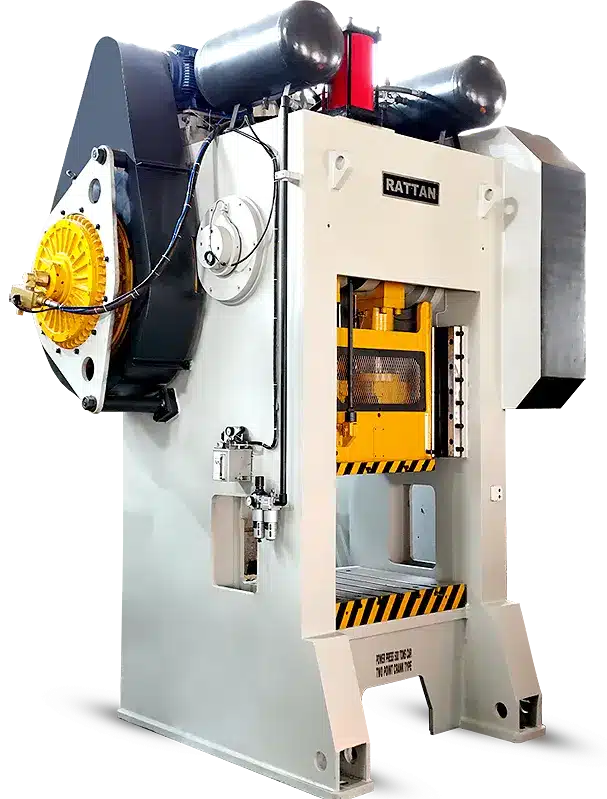

Two Point Crank Type Power Press
Technical specification for Two Point Crank Type Power Press
| Model | 250–TON | 300–TON | 400–TON | 500–TON | 600–TON | 800–TON | 1000–TON |
| CAPACITY | 250 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Type | Crank Type | Crank Type | Crank Type | Crank Type | Crank Type | Crank Type | Crank Type |
| Construction | H-Type | H-Type | H-Type | H-Type | H-Type | H-Type | H-Type |
| Stroke Length | 175mm Fix | 175mm Fix | 175mm Fix | 200mm Fix | 200mm Fix | 200mm Fix | 250mm Fix |
| Adjustment of Ram(Motorized) | 60mmmm Fix | 75mm Fix | 75mm Fix | 80mm Fix | 80mm Fix | 80mm Fix | 100mm Fix |
| Bed Area (LRxFB) | 1060×B50 | 1000×800 | 1150×10O0mm | 1200×1000mm | 1300×1000mm | 1400×1200mm | 1500×1250mm |
| Day Light | 575mm | 600mm | 650mm | 700mm | 700mm | 800mm | 800mm |
| Stroke Per Minutes | 45-SPM | 45-SPM | 40-SPM | 40-SPM | 40-SPM | 40-SPM | 40-SPM |
| Bolster Opening | ∅150mm | ∅150mm | ∅200mm | ∅200mm | ∅200mm | ∅200mm | ∅200mm |
| Ram Face Area (FBxLR) | 900×600mm | 900×70Dmm | 1000m×800mm | 1000m×800mm | 1100m×800mm | 1200×900mm | 1300×1000mm |
| Floor to Top of Bed | 900mm | 900mm | 900mm | 900mm | 900mm | 900mm | 900mm |
| Hole Size on Ram for Face for Shank | ∅60mm | ∅60mm | ∅60mm | ∅60mm | ∅70mm | ∅75mm | ∅60mm |
| Type of Clutch and Brake | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Ram Balancing | Pneumatic Cylinder | Pneumatic Cylinder | Pneumatic Cylinder | Pneumatic Cylinder | Pneumatic Cylinder | Pneumatic Cylinder | Pneumatic Cylinder |
| Electric Control Panel | Suitable | Suitable | Suitable | Suitable | Suitable | Suitable | Suitable |
| Main Motor | 25HP 1440RPM | 25HP 1440RPM | 40HP 1440RPM | 5OHP 1440RPM | 60HP 1440RPM | 75HP 1440RPM | 90HP 1440RPM |
| Lubrication | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
| Air Presser | 5.5Kg/cm2 | 5.5Kg/cm3 | 5.5 Kg./cm4 | 5.5 Kg./cm5 | 5.5 Kg./cm6 | 5.5 Kg./cm7 | 5.5 Kg./am8 |
| Approx. Weight | 13 TON | 17 TON | 20 TON | 23 TON | 26 TON | 30 TON | 34 TON |
