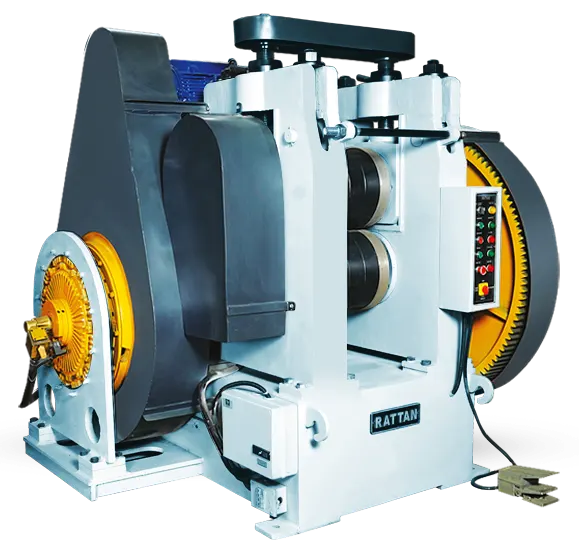

Roll Forge Reducer is required for providing exact & precise shapes to workpiece by passing them through two rolls having dies. It is widely utilized in metal fabricating industries for making various machine and architectural structures according to need. This forge reducer works by reducing cross-sectional area of feed metal in order to provide required shape. Roll Forge Reducer offered by us works with help of CNC controls assuring its user friendly nature.
Technical specification for Roll Forge Reducer
| Model | UNIT | RHF–140 | RHF–170 | RHF–220 | RHF–300 |
Roller Dia | MM | 140 | 170 | 220 | 300 |
Roller Center Distance | MM | 250 | 310 | 360 | 480 |
Roll Forging Effective Width | MM | 220 | 240 | 260 | 520 |
Forge Roll Center Adjustment | MM | 3 | 3 | 3 | 5 |
Maximum Mat. Dia | MM | 30 | 45 | 60 | 80 |
Maximum Mat. Length | MM | 400 | 500 | 600 | 725 |
Stroke Per Minutes | S.P.M | 40 | 35 | 30 | 25 |
Clutch Type | Penumatic | Pneumatic | Pneumatic | Pneumatic | |
Air Pressure | Kg/Cm2 | 5.5 | 5.5 | 5.5 | 5.5 |
Main Motor | KW | 7.5/10 | 15/20 | 18.5/25 | 32/40 |
Features:
- In comparison with the forging press in the extension of the molding property, the extension rate may be multiplied about 3 to 4 times and/or above.
- The natural molding is absolutely defect-free. The roller design makes the pre-shaping before forging feasible.
- Skillful operator is not required , and easy to operate , adjust, and install molding fixture.
- Molds are exchangeable, and in reverse motion this is substantially stable and easy to maintain.

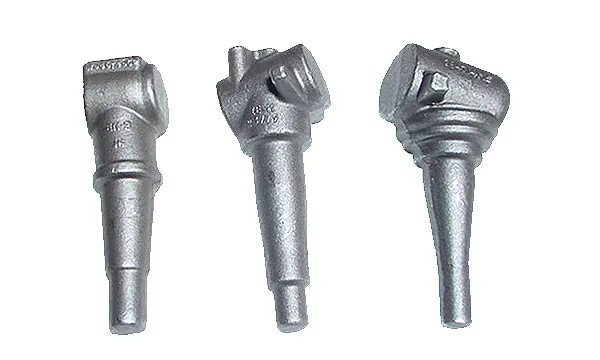

Application:
